Magnetic separator

2022-11-02 Source：This site Views:2119

The main purpose

1,magnetic system is made of high-quality ferrite and rare earth composite materials,magnetic circuit is reasonable and high gradient,magnetic stability.

2,according to user requirements,can provide downstream,counter-current,half counter-current and double drum magnetic separator.

3.The equipment has simple structure,large processing capacity,convenient operation and easy maintenance

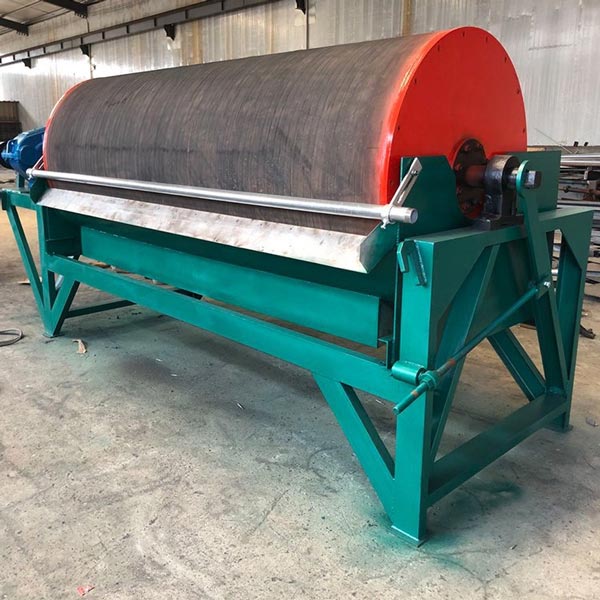

Wet permanent magnetism drum magnetic separator

Model No.	Trough way	Cylinder size DxL	Production capacity of the sample	Magnetic field intensity on cylinder surface	Applications	Choose size	Speed of rotation for cylinder	Electromotor power


CTS-46	Downstream Countercurre Halfcountercurrent	400x600	6~10	116(1200)	Rough irg Sebcted	6-0.8	60	1.5


CTS-69 CTN-69 CTB-69	Downstream Countercurre Halfcountercurrent	600x900	10-20	118(1450)	Roughirg Sebcted Roughirg Scavenging Roughirg Sebcted	6-0 0.6-0 0.2-0	40	1.5




CTS-618 CTN-618 CTB-618	Downstream CountercurreHalfcountercurrent	600x1800	40-60 30-50 25-40	120(1500)	Roughirg Sebcted Roughirg Scavenging Roughirg Sebcted	6-0 0.6-0 0.2-0	48	1.6




CTS-712 CTN-712 CTB-712	Downstream Countercurre Halfcountercurrent	750x1200	20-40	124(1550)	Roughirg Sebcted Roughirg Scavenging Roughirg Sebcted	6-0 0.6-0 0.5-0	35	3




CTS-718 CTN-718 CTB-718	Downstream Countercurre Halfcountercurrent	750x1800	20-45	124(1550)	Roughirg Sebcted Roughirg Scavenging Roughirg Sebcted	6-0 0.6-0 0.15-0	35	4




CTS-918 CTN-918 CTB-918	Downstream Countercurre Halfcountercurrent	900x1800	40-60	128(1600)	Roughirg Sebcted Roughirg Scavenging Roughirg Sebcted	6-0 0.6-0 0.5-0	30	5.5




CTS-924 CTN-924 CTB-924	Downstream Countercurre Halfcountercurrent	900x2400	40-60	128(1600)	Roughirg Sebcted Roughirg Scavenging Roughirg Sebcted	6-0 0.6-0 0.5-0	30	5.5




CTS-1018 CTN-1018 CTB-1018	Downstream Countercurre Halfcountercurrent	1050x1800	60-80	132(1650)	Roughirg Sebcted Roughirg Scavenging Roughirg Sebcted	6-0 0.6-0 0.6-0	26	5.5




CTS-1024 CTN-1024 CTB-1024	Downstream Countercurre Halfcountercurrent	1050x2400	60-80	132(1650)	Roughirg Sebcted Roughirg Scavenging Roughirg Sebcted	6-0 0.6-0 0.5-0	26	7.5



CTS-1224 CTN-1224 CTB-1224	Downstream Countercurre Halfcountercurrent	1200x2400	80-100	136(1700)	Roughirg Sebcted Roughirg Scavenging Roughirg Sebcted	6-0 0.6-0 0.5-0	22	7.5



CTS-1230 CTN-1230 CTB-1230	Downstream Countercurre Halfcountercurrent	1200x3000	80-100	140(1750)	Roughirg Sebcted Roughirg Scavenging Roughirg Sebcted	6-0 0.6-0 0.5-0	18	11




Remark	Model Description: Magnetic separator Cylinder (drum) Permanent magnetism WetS - Downstream trough Half countercurrent trough
