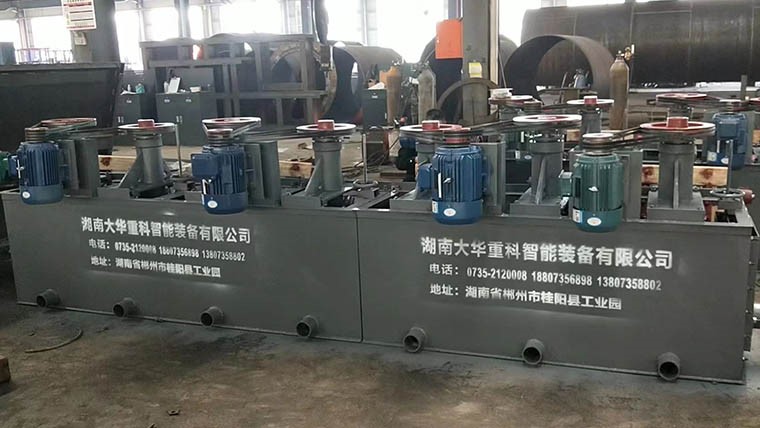

Flotation machine

2022-11-02 Source：This site Views:1439

XCF and KYF float advance machines are aerated flotation machines with small impeller diameter and low circumferential velocity,which can reduce power by 30-50%.There is an air distributor in the groove,so the air is evenly dispersed:the impeller plays the role of centrifugal pump,which can make the solid particles fully suspended;the U-shaped groove structure,which can make the tailings deposition minimum;the impeller structure and blade gap flow channel design is reasonable,the impeller wear is more uniform,the impeller and stator service life is long.KYF type has no self-priming pulp ability,low power:KCF type has self-priming pulp ability,can be configured horizontally,without foam pump,but the power consumption is slightly higher than KYF,so XCF type and high KYF type are generally configured into units,XCF type is suction tank,KYF type is dc tank,combined unit can be configured horizontally,without foam pump.

Technical parameters of BF flotation machine

Modlei	Volume	Cell size	Impeller Dia.	Capacity	Power	Singe cell weight
	Volume	Cell size	Impeller Dia.	Capacity	Power	Singe cell weight
	m3	mm	mm	m3/min	kw	Kg
BF-0.37	0.37	740x740x750	286	0.2-0.4	1.5/1.1	470
BF-0.65	0.65	850x950x900	300	0.3-0.7	3/1.1	932
BF-1 2	1.2	1050x1150x1100	450	0.6-1.2	5 5/11	1370
BF-2.0	2	1400x1450x1120	500	1-2	7.5/1.1	1750
BF-2.8	2.8	1650x1650x1150	550	1.4-3	11/1.5	2130
BF-4	4	1900x2000x1200	650	2-4	15/1.5	2585
BF-6	6	2200x2350x1300	700	3-6	18.5/1.5	3300
BF-8	8	2250x2850x1400	760	4-8	30/1.5	4130
BF-10	10	2250x2850x1700	760	5-10	30/1.5	4660
BF-16	16	2850x3800x1700	850	8-16	37/1.5	8320
BF-20	20	2850x3800x2000	850	W-20	37/1.5	8670
BF-24	24	3150x4150x2000	920	12-24	45/1.5	8970

Technical parameters of CF flotation machine

Mode	Volume	cell size	Power	capacity	power	Air flow sucked	singe cell weight
	Volume	cell size	Power	capacity	power	Air flow sucked	singe cell weight
	m3	mm	kw	m3/min	kw	m3/m2min	kg
GF-0.35	0.35	700x700x730	1.5	0.1-0.2	0.75	1.2	470
GF-0.7	0.7	900x900x900	3	0.1-0.4	1.1	1.2	932
GF-1.1	1.1	1100x1100x1000	5	0.2-0.5	1.1	t.2	1370
GF-2	2	1400x1400x1150	7.5	0.3-1.0	1.5	1.2	1750
GF-3	3	1500x1850x1200	11	0.5-1.5	1.5	1.2	2230
GF-4	4	1600x2150x1250	15	0.5-2	1.5	1.2	2585
GF-6	G	2000x2500x1300	22	1--3	1.5	1.2	3300
GF-8	8	2200x2900x1400	30	1-4	1.5	1.2	4130
GF-10	10	2200x2900x1700	30	2-6	1.5	1.2	4500
GF-16	15	2850x3800x1700	45	3-8	2.2	1.2	8320
GF-20	20	2850x3800x2000	45	4-10	2.2	1.2	8670
GF-24	24	3150x4150x2000	55	5-12	2.2	1.2	8970
GF-28	28	3150x4150x2300	55	5-14	2.2	1.2	9480
GF-42	42	3600x4800x2650	75	8-20	3	1.2	19400

Technical parameters for flotation machine

model	volume m3	cell size mm	Impeller dia mm	Impeller Speed r/mm	capacity m³/min	power kw	singe cell weight kg
model	volume m3	cell size mm	Impeller dia mm	Impeller Speed r/mm	capacity m³/min	power kw	singe cell weight kg
XCF/KYF-1	1	1000x1000x1100	400/340	358/281	0.2-1	5.5/4/1.1	920/1056
XCF/KYF-2	2	1300x1300x1250	470/410	331/247	0.4-2	7.5/5.5/1.1	1158/1346
XCF/KYF-3	3	1600x1600x1400	540/480	266/219	0.6-3	11/7.5/1.5	2172/2074
XCF/KYF-4	4	1800x1800x1500	620/550	215/200	1.2-4	15/11/1.5	2375/2100
XCF/KYF-6	6	2050x2050x1750	620/550	215/200	3-6	15/11/1.5	3545/3278
XCF/KYF-8	8	2200x2200x1950	720/630	185/175	3-8	22/15/1.5	4142/3857
XCF/KYF-10	10	2400x2400x2100	760/660	185/175	3-10	22/15/1.5	4894/4334
XCF/KYF-16	16	2800x2800x2400	860/740	160	4-6	37/30/1.5	6928/7575
XCF/KYF-20	20	3000x3000x2700	910/780	160	4-20	37/30/1.5	9200/8240
XCF/KYF-24	24	3100x3100x2900	950/800	153	4-24	37/30/1.5	10819/9820
XCF/KYF-30	30	3500x3500x3025	880/900	140	40-30	45/37/1.5	14810/13820
XCF/KYF-38	38	3600x3600x3400	1050/880	138	10-38	45/37/1.5	16900/16300
XCF/KYF-40	40	3800x3800x3400	1050/1050	138	10-40	45/37/1.5	18790/17097
XCF/KYF-50	50	4400x4400x3500	1200/1030	134	10-40	90/75/1.5	22000/22000

Performance parameters/models		XJ1	XJ2	XJ3	XJ6	XJ11	XJ28	XJZ11	SF0.37	SF0.65	SF1.2	SF2.8	SF4	SF8


Volume m3		0.13	0.23	0.35	0.62	1.1	2.8	1.1	0.37	0.65	1.2	2.8	4	8
Pulp juice production capacity m³/min		0.05-0.16	0.12-0.28	0.18-0.4	0.3-0.9	0.5-1.5	1.56-3.5	0.5-1.5	0.2-0.4	0.35-1	0.6-1.6	1.5-3.5	2-4	4-8
Air intake m³/㎡min		0.25	0.35	0.5	0.9-1	0.9-1.1	2.5	0.95-1.1	0.8-1	0.9-1	0.9-1.1	1-1.2	1-1.2	0.9-1
Driving motor	Power kw	0.75	1.5	2.2	3	5.5	11	5.5	3	4	7.5	15	15	30
Driving motor	Speed r/min	1400	1430	1400	960	960	970	960	1410	960	960	970	730	730
Scraper motor	Power kw	0.55	0.55	0.55	1.1	1.1	2.2	1.5	0.55	1.1	1.1	2.2	3	4
Scraper motor	Speed r/min	1390	1390	1390	1400	1400	1400	1400	1390	1400	1400	1400	1400	1400
impeller	Diameter mm	200	250	300	350	500	600	500	280	300	450	550	650	760
impeller	Speed r/min	600	500	470	400	350	280	330	380	400	320	268	220	191
Tank size (length * width * height) mm		500X500	600X600	700X700X	900X900	1100X1100	1750X1600	1100X1100	700X700	900X900	1100X1100	1700X1600	1850X2050	2200X2900
Tank size (length * width * height) mm		X550	X650	750	X850	X1000	X1100	X1000	X750	X900	X1100	X1150	X1200	X1400
