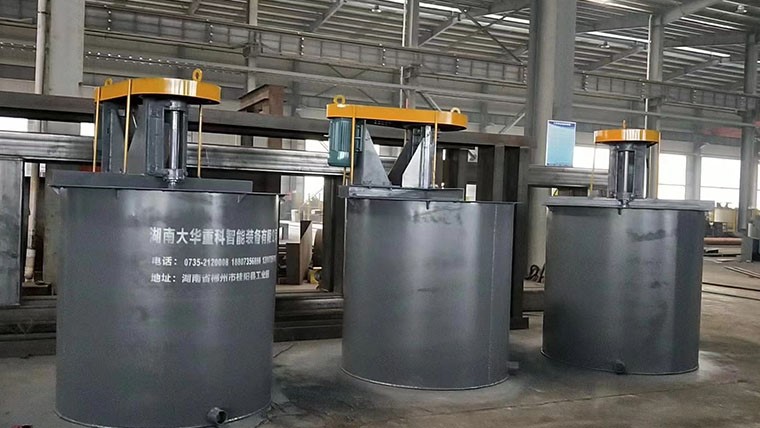

Mixing barrel

  The stirring barrel is the necessary equipment which is driven by the triangle belt of the motor to rotate the impeller,and fully mix the medicine and pulp evenly,increase the reaction time of the drug action and strengthen the quality of the drug reaction.This machine is suitable for the mining industry,and can also be used for various chemical industry stirring.

  The stirring barrel is suitable for all kinds of metal ore,mainly used for stirring before flotation,so that the reagent and pulp can be fully mixed,also can be used for other non-metallic minerals stirring.It is used for fixed ingredients with a concentration not greater than 30%(by weight)and a particle size less than 1mm.It is in the form of flat bottom barrel radial circulation spiral turbomachinery agitator.

  Technical parameters for Agitating vessel

Performance parameterS		Ordinary Agitating Vessel					Hoisting Agitating Vessel
		XB-1000	XB-1200	XB-1500	XB-1800	XB-2000	TXB-1000	TXB-1500	TXB-2000
Trough size (inner diameter x high)		1000x1000	1200x1200	1500x1500	1800x1800	2000x2000	1000x1000	1500x1500	2000x2000
Effective volume		0.58	1.1	2.2	2.6	5.46	0.65	2.2	3.2
Impeller diameter		240	300	400	500	550	420	500	690
Impeller speed of rotation		530	410	320	280	230	296	296	280
Electromotor	Model	Y132S-6	Y132M-6	Y160M-6	Y160L-6	Y180L-6	Y112M2-4	Y132M-4	Y200Lf6
	Power	3	4	7.5	11	15	4	7.5	18.5
	Speed of rotation	960	960	960	960	960	1400	1440	970
Dimensions (LxWxH)		1750x1690	1750x1690	1750x1690	2420x2160	2420x2160	1500x1170	2080x1680	2690x2200
		x2186	x2186	x2186	x2846	x2846	x2350	x2771	x3599
Total weight of machine		790	940	908	1300	1650	870	1463	3397
