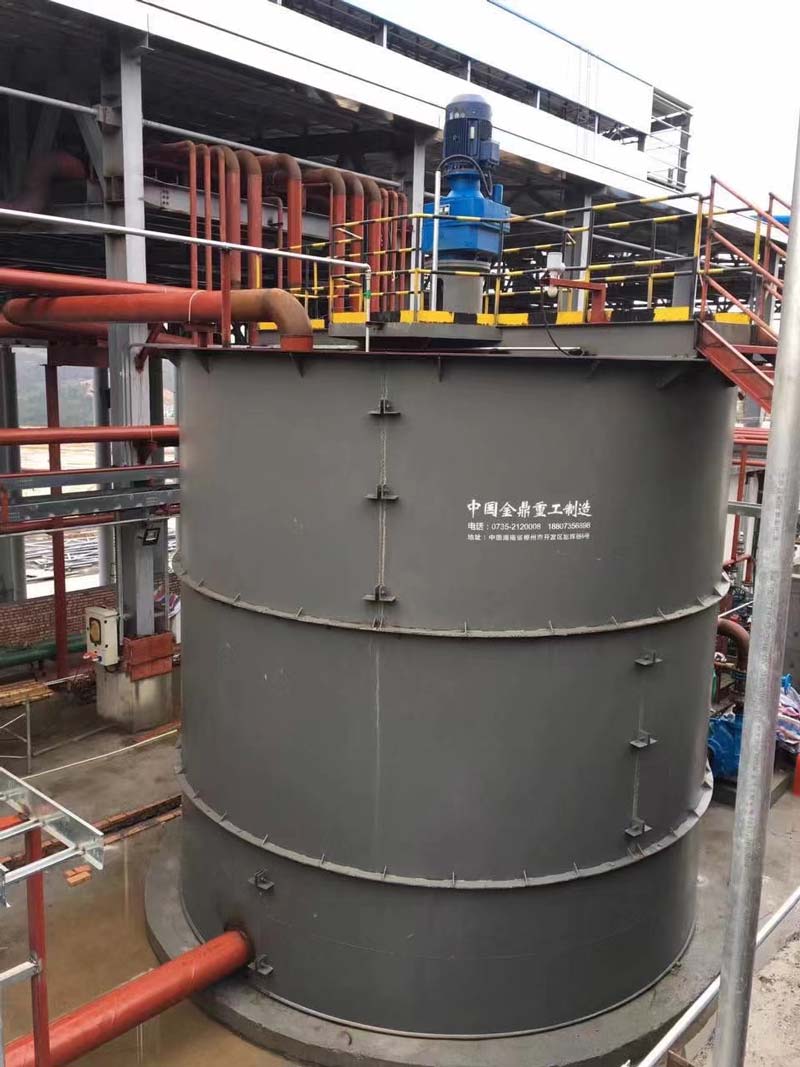

Mixing barrel

  The stirring barrel is the necessary equipment which is driven by the triangle belt of the motor to rotate the impeller,and fully mix the medicine and pulp evenly,increase the reaction time of the drug action and strengthen the quality of the drug reaction.This machine is suitable for the mining industry,and can also be used for various chemical industry stirring.

  The stirring barrel is suitable for all kinds of metal ore,mainly used for stirring before flotation,so that the reagent and pulp can be fully mixed,also can be used for other non-metallic minerals stirring.It is used for fixed ingredients with a concentration not greater than 30%(by weight)and a particle size less than 1mm.It is in the form of flat bottom barrel radial circulation spiral turbomachinery agitator.

  Technical parameters for Agitating vessel

Performance parameterS		Ordinary Agitating Vessel
		XB-1000	XB-1200
Trough size (inner diameter x high)		1000x1000	1200x1200
Effective volume		0.58	1.1
Impeller diameter		240	300
Impeller speed of rotation		530	410
Electromotor	Model	Y132S-6	Y132M-6
	Power	3	4
	Speed of rotation	960	960
Dimensions (LxWxH)		1750x1690	1750x1690
		x2186	x2186
Total weight of machine		790	940

Performance parameterS		Ordinary Agitating Vessel
		XB-1500	XB-1800
Trough size (inner diameter x high)		1500x1500	1800x1800
Effective volume		2.2	2.6
Impeller diameter		400	500
Impeller speed of rotation		320	280
Electromotor	Model	Y160M-6	Y160L-6
	Power	7.5	11
	Speed of rotation	960	960
Dimensions (LxWxH)		1750x1690	2420x2160
		x2186	x2846
Total weight of machine		908	1300

Performance parameterS		Ordinary Agitating Vessel	Hoisting Agitating Vessel
		XB-2000	TXB-1000
Trough size (inner diameter x high)		2000x2000	1000x1000
Effective volume		5.46	0.65
Impeller diameter		550	420
Impeller speed of rotation		230	296
Electromotor	Model	Y180L-6	Y112M2-4
	Power	15	4
	Speed of rotation	960	1400
Dimensions (LxWxH)		2420x2160	1500x1170
		x2846	x2350
Total weight of machine		1650	870

Performance parameterS		Hoisting Agitating Vessel
		TXB-1500	TXB-2000
Trough size (inner diameter x high)		1500x1500	2000x2000
Effective volume		2.2	3.2
Impeller diameter		500	690
Impeller speed of rotation		296	280
Electromotor	Model	Y132M-4	Y200Lf6
	Power	7.5	18.5
	Speed of rotation	1440	970
Dimensions (LxWxH)		2080x1680	2690x2200
		x2771	x3599
Total weight of machine		1463	3397
