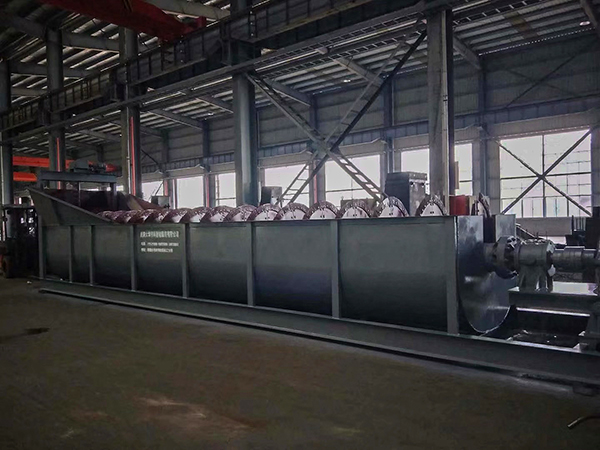

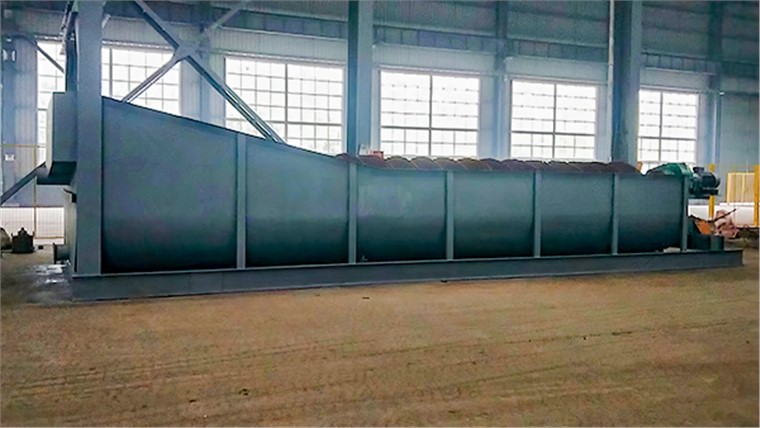

Spiral classifier is widely used in concentrator and ball into closed circulation flow diverting ore sand, and metal beneficiation process for pulp particle size classification, and washing operation in demud, dehydration and other operations. This machine has the characteristics of simple structure, reliable operation and convenient operation.
Technical parameters for FG High weir (single, double) spiral classifier
|
Performance paramete
|
High weir double spiral
|
|
2FG12
|
2FG15
|
|
Lifter framework
|
Y90L-4
|
Y100L〔
|
|
Gearing
|
Model No.
|
Y132M2-6
|
Y160L-6
|
|
Power
|
7.5x2
|
11x2
|
|
Speed of rotatic
|
n 960
|
960
|
|
Screw
|
Diameter
|
1200
|
1500
|
|
Speed of rotation
|
6
|
6
|
|
Wafer trough
|
LxWxH
|
650x2600x985
|
8230x3200x1300
|
|
lnclination( degrees)
|
12° -18 °
|
12° -18 °
|
|
Ffoessinga#
|
0verflow
|
129
|
19.2
|
|
Return sand quantity
|
79.5
|
152-228
|
|
Dimensions （ LxWxH）
|
8182x2890x3085
|
10409x3512x4052
|
|
Total weight of machine
|
15328
|
21513
|
|
Performance paramete
|
High weir double spiral
|
High weir single spiral
|
|
2FG20
|
FG5
|
|
Lifter framework
|
Y132S
|
manual
|
|
Gearing
|
Model No.
|
Y225M-6
|
Y90L-6
|
|
Power
|
30x2
|
2.2
|
|
Speed of rotatic
|
980
|
960
|
|
Screw
|
Diameter
|
2000
|
500
|
|
Speed of rotation
|
5
|
9
|
|
Wafer trough
|
LxWxH
|
8400x4200x1650
|
4500x544x375
|
|
lnclination( degrees)
|
12°-18 °
|
12°-18 °
|
|
Ffoessinga#
|
0verflow
|
33.3
|
1.3
|
|
Return sand quantity
|
208-325
|
5.6
|
|
Dimensions （ LxWxH）
|
11000x4600x4490
|
4500x560x1480
|
|
Total weight of machine
|
35500
|
1600
|
|
Performance paramete
|
High weir single spiral
|
|
FG7
|
FG10
|
|
Lifter framework
|
manual
|
manual
|
|
Gearing
|
Model No.
|
Y132S-6
|
Y132-6
|
|
Power
|
3
|
5.5
|
|
Speed of rotatic
|
960
|
960
|
|
Screw
|
Diameter
|
750
|
1000
|
|
Speed of rotation
|
8
|
7
|
|
Wafer trough
|
LxWxH
|
6500x830x547
|
6500x1100x700
|
|
lnclination( degrees)
|
12° -18 °
|
12°-18 °
|
|
Ffoessinga#
|
0verflow
|
2
|
4.6
|
|
Return sand quantity
|
8.3
|
28
|
|
Dimensions （ LxWxH）
|
7720x1272x1952
|
7891x1520x2234
|
|
Total weight of machine
|
3067
|
4710
|
|
Performance paramete
|
High weir single spiral
|
|
FG12
|
FG15
|
|
Lifter framework
|
Y90L-4
|
Y100L1
|
|
Gearing
|
Model No.
|
Y160M2-6
|
Y160M-6
|
|
Power
|
7.5
|
11
|
|
Speed of rotatic
|
960
|
960
|
|
Screw
|
Diameter
|
1200
|
1500
|
|
Speed of rotation
|
6
|
6
|
|
Wafer trough
|
LxWxH
|
8400x1582x985
|
8230x1856x1300
|
|
lnclination( degrees)
|
12°-18 °
|
12°-18 °
|
|
Ffoessinga#
|
0verflow
|
6.25
|
9.5
|
|
Return sand quantity
|
47.7
|
76
|
|
Dimensions （ LxWxH）
|
9724x1700x3085
|
10189x1922x4085
|
|
Total weight of machine
|
9110
|
10162
|
|
Performance paramete
|
High weir single spiral
|
|
FG20
|
|
Lifter framework
|
Y132S-4
|
|
Gearing
|
Model No.
|
Y200L-6
|
|
Power
|
22
|
|
Speed of rotatic
|
970
|
|
Screw
|
Diameter
|
2000
|
|
Speed of rotation
|
5
|
|
Wafer trough
|
LxWxH
|
8400x2100x1650
|
|
lnclination( degrees)
|
12° -18 °
|
|
Ffoessinga#
|
0verflow
|
16.7
|
|
Return sand quantity
|
135-248
|
|
Dimensions （ LxWxH）
|
10790x2530x4490
|
|
Total weight of machine
|
20500
|
