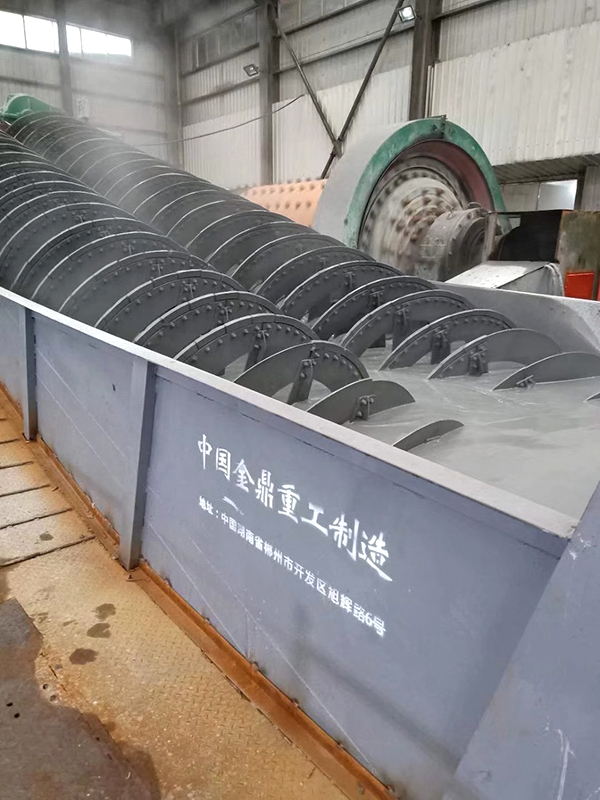

FC submerged (single, double) spiral classifier

  Spiral classifier is widely used in concentrator and ball into closed circulation flow diverting ore sand, and metal beneficiation process for pulp particle size classification, and washing operation in demud, dehydration and other operations. This machine has the characteristics of simple structure, reliable operation and convenient operation.

  Technical parameters for FC immersed (single, double) spiral classifier

Performance parameters		Double spiral	Immersed single spiral
		2FC12	FC7	FC10	FC12	FC15	FC18	FC20	FC24
Lifter framework		Y100L1 -6	manual	manual	Y90L-4	Y90L-4	Y90L-4	Y90L-4	Y90L-4
Gearing	Model No.	Y160M-6	Y132S-6	Y132M2-6	Y160M-6	Y160M-6	Y180L-6	Y200L-6	Y225M-6
	Power	7.5x2	3	5.5	7.5	11	15	22	30
	Speed of rotation	970	960	960	970	970	970	970	970
Screw	Di ameter	1200	750	1000	1200	1500	1800	2000	2400
	Speed of rotation	6	8	7	6	6	5	4.6	3.8
Water trough	LxWxH	8400x2600	6500x830	6500x1100	7000x1360	7500x1660	8000x1960	8500x2180	9000x2640
		x985	x547	x700	x985	x1300	x1780	x1850	x2050
	Inclination degrees	12°-18 °	12° -18 °	12° -18 °	12 °-18 °	12°-18 °	12° -18 °	12° -18 °	12°-18 °
Processing ability	Overflow	13	2	3.5	6.25	7.7	8.9	13.3	20.5
	Return sand quantity	98-156	8.3-18.5	28-45	49-78	76-114	96-146	150-248	176-284
Dimensions (LxWxH)		9860x2912x3717	7720x1272xl952	7891x1520x2712	9721x1700x2980	10497x1922x3300	11000x2120x3600	11500x2524x4000	12600x2880x4500
Tbtal weight of machine		15328	3067	4700	9120	12742	16345	24600	32700
